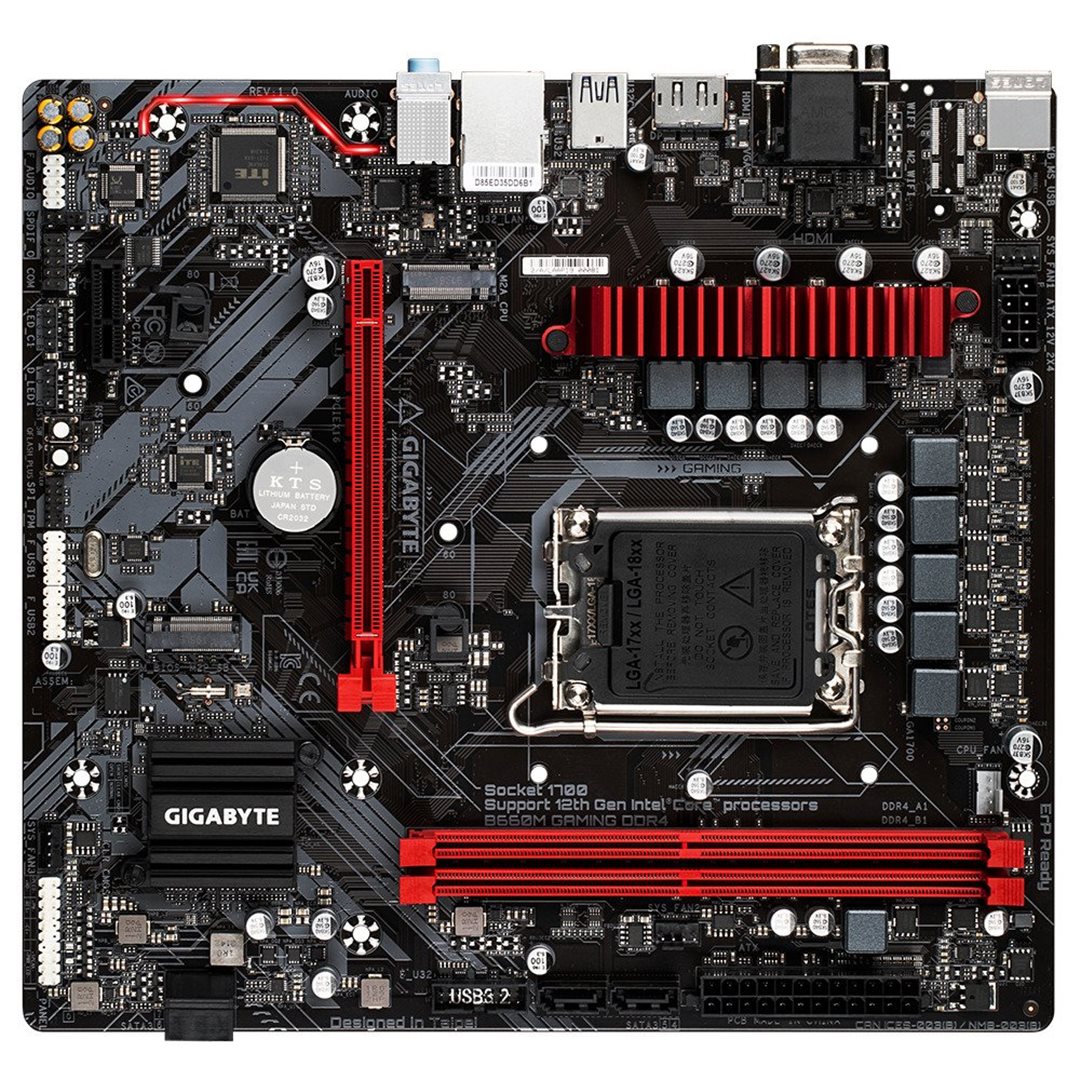

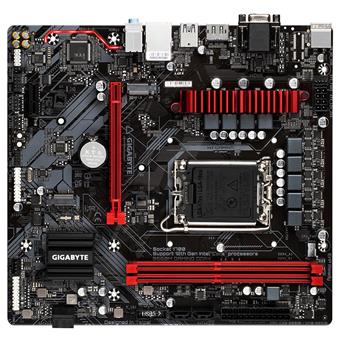

GIGABYTE B660M GAMING DDR4/ LGA 1700/ mATX

Chipset: Intel B660 Express Chipset

Rozměrový formát: Micro ATX (24.4cm x 22.5cm)
Podpora pro procesory: 12th Generation Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA 1700

Pozice na paměti: 2 x DDR4 DIMM, Dual channel memory architecture
Podpora pro paměti: DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: ECC, XMP

Grafická karta: (Intel HD Graphics)

• 1 x D-Sub port - 1920x1200@60 Hz
• 1 x HDMI 2.1 port - 4096x2160@60 Hz
• 1 x DisplayPort 1.2 - 4096x2304@60 Hz

Zvuková karta: Realtek Audio CODEC

• 2/4/5.1/7.1-channel

Síťová karta: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rozšiřující sloty:

• 1 x PCI Express x16 slot, running at x16 (PCI Express 4.0 standard)
• 1 x PCI Express x1 slot (PCI Express 3.0 standard)

RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10

SATA: 4 x SATA 6Gb/s connectors

M.2: 2 x M.2 Socket 3 connectors

USB:

• Interní:
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• Externí:
• 2 x USB 2.0/1.1 ports
• 3 x USB 3.2 Gen 1 ports
• 1 x USB Type-C port, with USB 3.2 Gen 1 support

Interní porty:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x S/PDIF Out header
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Externí porty:

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 1 x DisplayPort
• 2 x USB 2.0/1.1 ports
• 3 x USB 3.2 Gen 1 ports
• 1 x USB Type-C port, with USB 3.2 Gen 1 support
• 1 x RJ-45 port
• 3 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobce: http://www.gigabyte.com/Motherboard/B660M-GAMING-DDR4-rev-10#kf
